Q2000 Sonicator

The Q2000 offers the ability to process large volumes in individual batches or flow through applications. The unit can be purchased with a probe for direct sonication in batch mode or with a Flocell for inline processing applications. Routine applications include emulsification, cell lysis, degassing, homogenization, solubilizing, deagglomerating and dispersing.

The Q2000 Sonicator allows the user to program processing times and a full range of intensity settings. Processing time can be set from 1 second to 10 hours. A pulsing feature is standard. Pulsing can reduce the amount of heat generated by sonication when processing temperature sensitive samples. A temperature monitoring probe option is also available.

For direct sonication, the Q2000 includes a high amplitude, 1.5" diameter probe with booster and is recommended for approximately 5-20L volumes. An optional 1” diameter probe is available for 1-10L volumes. See Sonicator Accessories for options and accessories.

For continuous processing applications, a Flocell accessory is available. The Q2000PSP (Production Scale Package) includes all the necessary parts to ultrasonically process samples on a larger scale. The offering can be customized depending on the needs of each individual lab or application. Download the PDF for more details: Q2000 Package.

Note: Air cooling of the Converter by a continuous duty air compressor is required. The user must provide approximately 10psi (3-4 cfm) of clean, dry air. If you do not have a proper compressor system, Qsonica offers a turnkey alternative option that can be added to any Q2000 unit for an additional fee (at a much lower cost than a continuous duty compressor).

Processing volumes are application specific. There are many variables (viscosity, concentration, etc.) that can affect the min/max processing volumes and processing times.

Ordering information:
#Q2000 includes Q2000 system with booster and standard probe (stand not included).

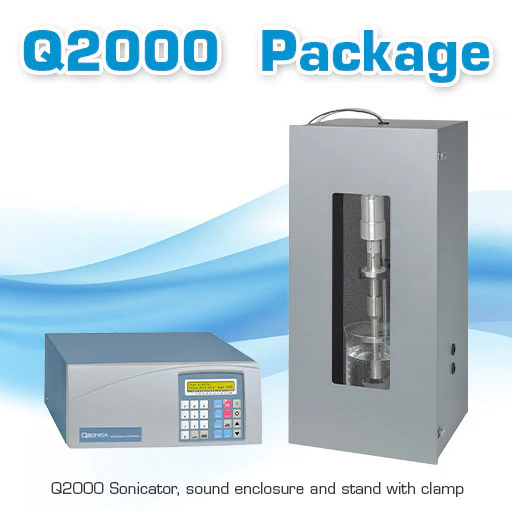

#Q2000SE includes Q2000 system with stand/clamp and sound enclosure.

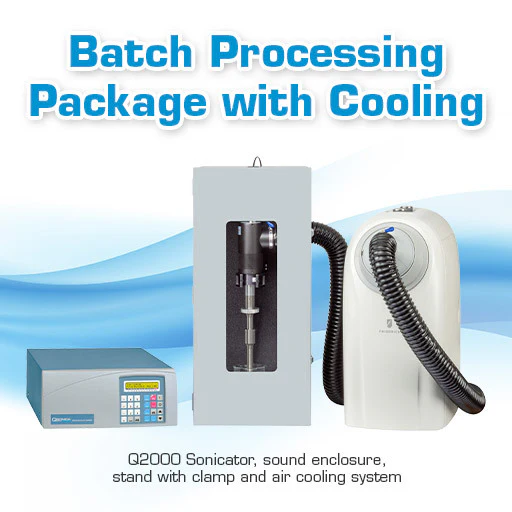

#Q2000SE-AC includes the Q2000SE plus portable air-cooling system.
#Q2000PSP includes the Q2000 production scale package, see PDF Q2000 Package.

The Q2000 requires a fused, single phase 3-terminal grounding type electrical outlet capable of supplying 230 +/- 10% VAC, 50/60 Hz, 20 amps.
