Q700 Sonicator
The Q700 Sonicator® is the most technologically advanced ultrasonic processor available today. Improved internal circuitry provides more efficient operation and sample-to-sample consistency, ensuring that you can obtain reliably reproducible results. The touchscreen interface enables easy programing and access to the Q700’s unmatched feature set. Full amplitude control from 1-100% better enables users to define optimum settings for efficient sample processing in challenging applications.
We turned up the power, giving the Q700 Sonicator a maximum power output of 700 watts, much more than other benchtop / laboratory-scale ultrasonic systems. This enables the Q700 to process larger volumes (up to two liters for low-viscosity liquids) or somewhat more viscous materials. With a wide range of accessories to accommodate a large variety of needs, such as continuous flow, low-volume, or multi-sample processing, the Q700 Sonicator is the most sophisticated and versatile Sonicator available today.

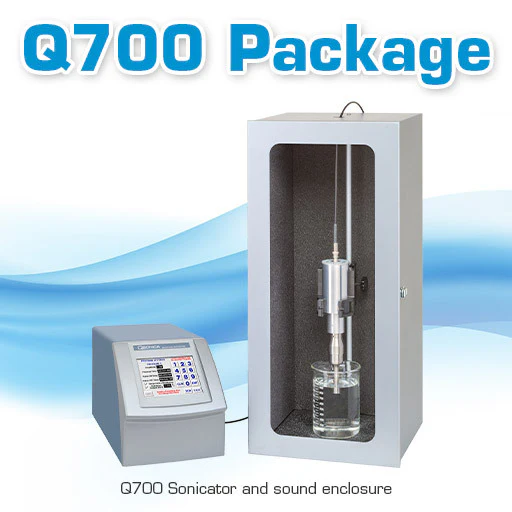

Ordering information: Part #Q700 includes a standard ½” diameter probe with replaceable tip (#4220). A variety of probe/horn options are available. If you do not require the standard probe (#4220) the system can be purchased without it. Part #Q700A is the Sonicator system (power supply, converter, cables and wrench set) but excludes the standard probe. Part #Q700E includes 432B2 (sound enclosure).
- Full Amplitude Control
- Amplitude (intensity) can be controlled across the entire dynamic range, from 1-100%, giving a greater degree of resolution and the ability to pinpoint the exact amplitude needed to optimally process your sample.
- Programmability
- Parameters including processing times, pulse on/off and amplitude can be saved to memory and run by the touch of a button.
- Pulse Mode
- Adjustable pulse On and Off times to reduce the heat gain in temperature sensitive samples.
- Temperature Monitoring
- An optional temperature probe is available for those customers who wish to monitor the temperature of their sample. If the temperature limit is reached, sonication shuts down to prevent overheating.
- RoHS Compliant
- All Qsonica equipment is built lead free.
- Run Multiple Programs In Sequence
- Multiple programs can be run in sequence. For example, the unit can be programmed to sonicate at 50% amplitude for 5 minutes, shut off for 2 minutes and re-start at 25% amplitude for 10 minutes. Up to 5 programs can be run in succession.
- Total Energy Output Display
- Energy delivered to the probe is displayed in both Watts and Joules.
- Auto Tuning
- The Sonicator digitally tracks frequency changes in the converter / tip assembly caused by load and temperature changes and maintains electrical efficiency at all times. Manual tuning is unnecessary.
- Overload Protection
- The unit is equipped with fault detection circuitry to shut down sonication in the event that a fault occurs.

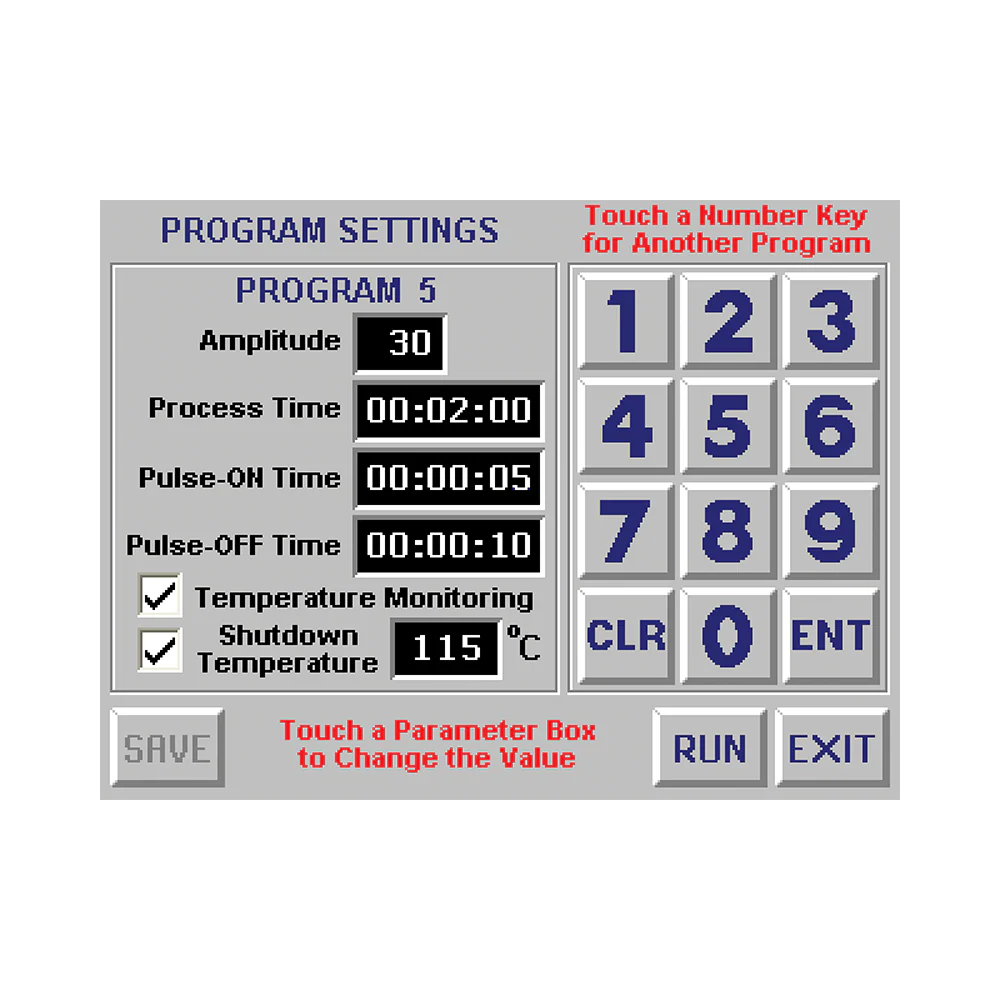

- Touch Screen Control
- A large, color LCD screen clearly displays all operating parameters and options. Intuitively and quickly access any of the Sonicator’s functions with a simple touch.
- Generator
- Converter
- 1/2” diameter probe
- Power cable
- Converter cable
- Wrench set
| Power Rating | 700 Watts |
| Frequency | 20 kHz |
| Programmability | 10 Programs |
| Programmable Timer | 72 Hours |
| Adjustable Pulse On/Off | 1 Second to 24 Hours |
| Dimensions | 8" W x 15.25" L x 8.5" H |
| Voltage | 110V, 50/60Hz |
| * | 220V not available online, contact us for local distributor |
| Volume | Up to 2 Liters |
